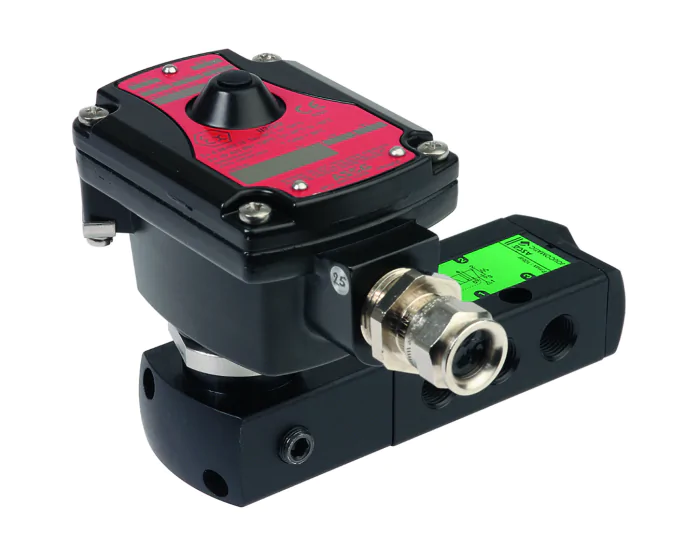

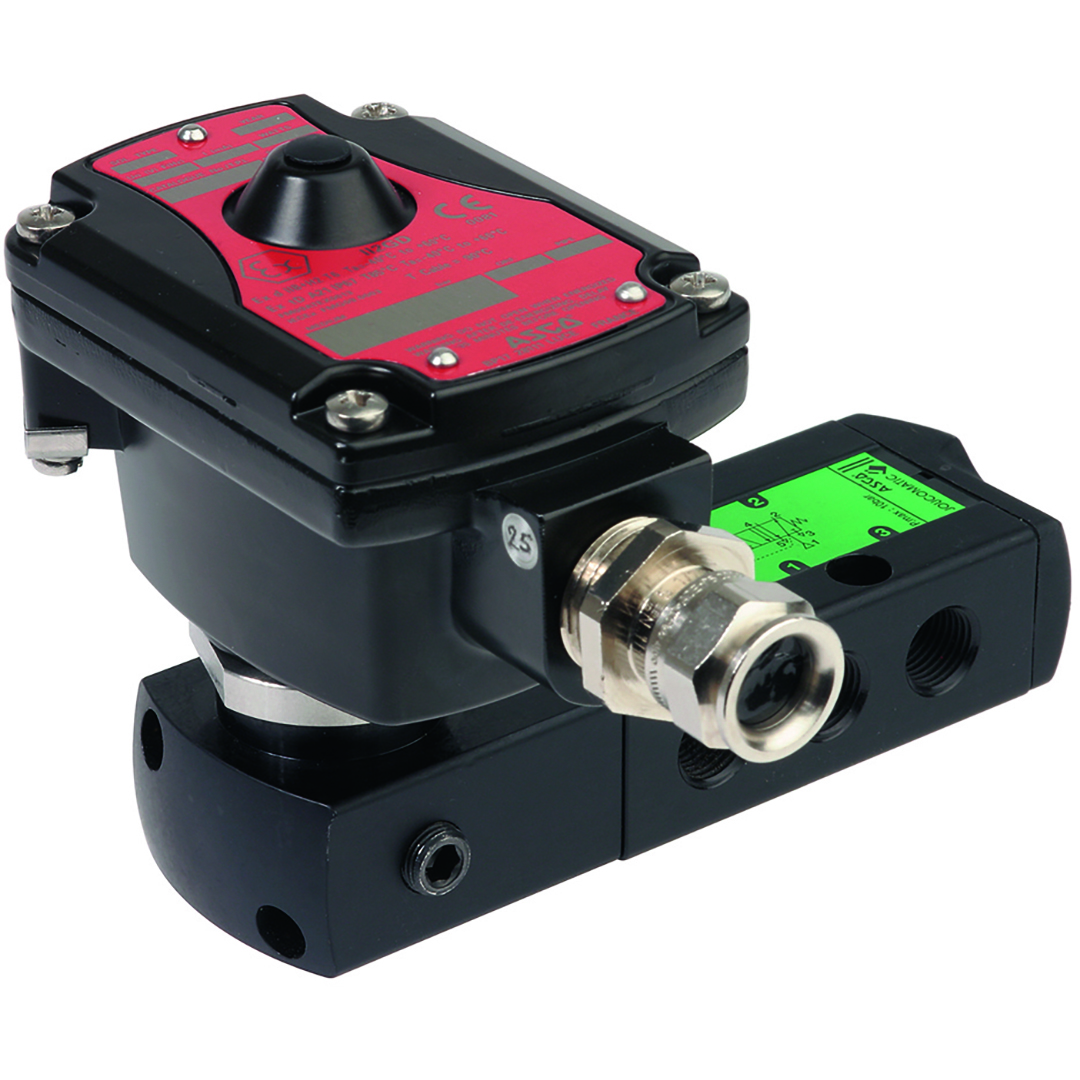

Name: Namur solenoid pilot valve 4280 monostable 551-LPKF 3/2-5/2 ATEX 230V
SKU: 1337
Price: 403.1 EUR
Availability: InStock

Namur solenoid pilot valve 4280 monostable 551-LPKF 3/2-5/2 ATEX 230V

Namur solenoid pilot valve 4280 monostable 551-LPKF 3/2-5/2 ATEX 230V

€403.10 (excl. btw)

Namur solenoid pilot valve 4280 monostable ASCO 551-LPKF 3/2-5/2 ATEX certified for precise control of pneumatic actuators.

In stock Subject prior to sales
Categories : Pneumatische aandrijvingen

Documenten:

Technical datasheet FR

Download

Description
Technical Specifications

Body in stainless steel A351 CF3M Trim in stainless steel AISI 316L Connection: threaded BSP 1'' Fluid: Water Design: Temperature 210 ºC (PTFE+GR seals) Flowrate N/D P1= 4 barg P2= 1.5 barg (Range: 0,5-3 barg) KV valve 3,5 m3/h

Specification	Value
Maximum delta P (bar)	10
Minimum delta P (bar)	2
ATEX atmosphere	IIB + H2
ATEX compatible	Yes
Fluid	Air / Neutral gases / Filtered
Protection index (IP)	IP 67
Kv (m³/h)	0.60
Body material	Aluminium
ATEX protection mode	Ex d
Pilot (NAMUR)	Asco
PS (bar)	10
Surface temperature	T4/T5/T6
Voltage	230 V AC
TS max (°C)	60
TS min (°C)	-25
Solenoid pilot valve type	monostable
Solenoid pilot valve ways	3/2 - 5/2
ATEX zone	1. 2. 21. 22
Warranty period	1 year

If you have any questions about this product, please feel free to contact us.

Product Name	Product Number	EVAC Number	Price	Add to Cart
1338	Aluminium 230 V AC	042800	S1001292	€403.10 (excl. btw)	add to cart
1339	Aluminium 24 V AC	042801	S1001293	€403.10 (excl. btw)	add to cart
1340	Aluminium 24 V DC	042805	S1001294	€403.10 (excl. btw)	add to cart
